Introducing PZT Boost: Premium Transducer Technology for Phased-Array NDT

Phased-array ultrasonic testing (PAUT) is increasingly being pushed to its limits. Whether you are inspecting thick sections, attenuating materials like austenitic welds and carbon-fiber composites, or using automated scanners with long cable runs, your equipment faces a common enemy: the erosion of the probe's signal budget.

When sensitivity becomes the limiting factor for your inspection performance, you need a transducer architecture that does more than just keep up.

Inspired by the extreme demands of premium cardiology arrays—which must image deep through attenuating tissue while maintaining contrast and resolution—Vermon Group has developed the PZT Boost transducer technology. Now adapted for NDT, PZT Boost delivers premium-grade sensitivity and penetration for your most challenging inspections.

Here is a closer look at how PZT Boost works, how it performs in benchmark testing, and what it means for your NDT operations.

The PZT Boost Technology: Rethinking the Architecture

Most conventional high-performance PAUT probes rely on a standard piezocomposite stack with an absorbing backing layer. While effective for damping and bandwidth, this conventional architecture inherently loses acoustic energy to the rear backing material, dissipating it as heat during both transmission and reception.

PZT Boost overcomes this limitation by replacing the lossy rear side with an advanced acoustic mirror.

Rather than absorbing the backward wave, the mirror reflects it forward in phase, where it adds directly to the transmitted pulse. This innovative architecture yields three major performance benefits for operators:

• Maximum Energy Recovery: Backward-emitted energy is recovered rather than dissipated, significantly raising the pulse-echo amplitude.

• Optimized Electrical Matching: Element capacitance increases while electrical impedance decreases. This improves the electrical match to the pulser and drastically reduces signal loss across long cables on reception.

• High Conversion Efficiency: The high-performance piezoceramic combines a high electromechanical coupling coefficient with a high dielectric constant, driving superior overall acoustic conversion.

Experimental Benchmark: 14 dB Sensitivity Gain

To quantify the PZT Boost advantage, we benchmarked it against our standard high-performance reference probe: the Vermon NDT 3.5L64 Type 12 (a 64-element linear array, 3.5 MHz center frequency, 0.6 mm pitch, 38.4 mm active aperture).

A PZT Boost array was built in the exact same configuration for a direct, apples-to-apples comparison.

Table 1: Pulse-Echo Performance (3.5L64 Type 12 Configuration)

Parameter	Standard Vermon Composite	PZT Boost	Change
Sensitivity (dB)	−62.2	−48.1	+14 dB
Center Frequency (MHz)	3.50	3.51	Unchanged
Bandwidth (%)	82	81	Unchanged
−20 dB Pulse Length (ns)	868	717	−17%

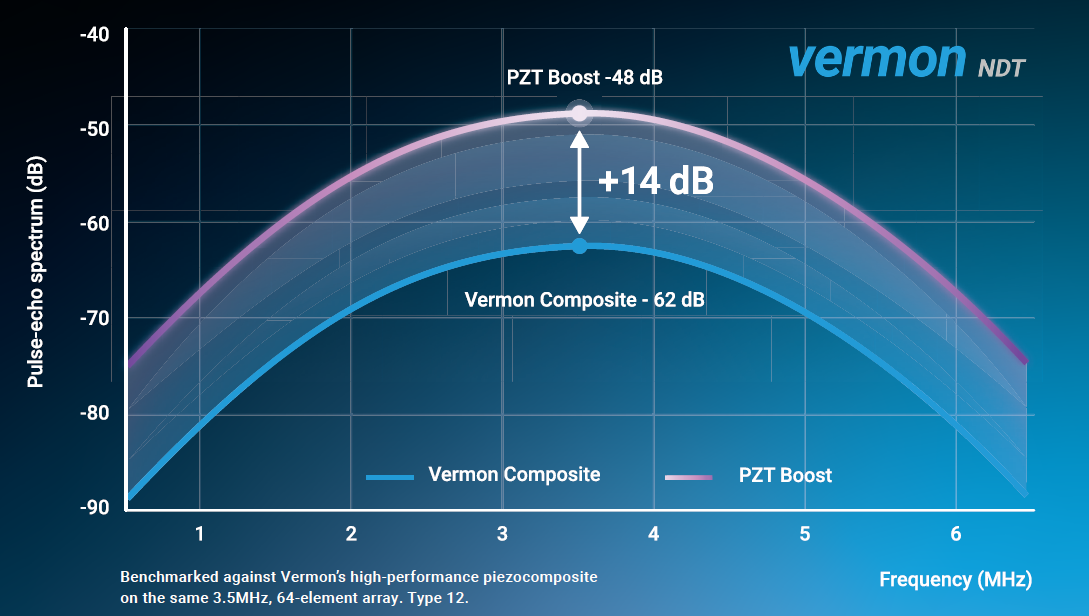

[Insert Figure 2: Comparative pulse-echo spectra chart here]

The Results: PZT Boost improves sensitivity by a staggering 14 dB, corresponding to a fivefold increase in echo amplitude. Crucially, this gain is achieved without the usual trade-off in bandwidth. Furthermore, the −20 dB Pulse Length actually decreases by 17%, indicating that the acoustic mirror architecture provides better damping than the traditional piezocomposite reference.

What This Means for Your NDT Applications

A 14 dB gain constitutes a massive signal budget upgrade. You can allocate this extra budget to extend penetration in thick materials, gain additional margin on flaws at depth, or operate your instruments at a lower gain for a vastly improved signal-to-noise ratio. Independently, the shorter pulse improves axial resolution and minimizes the near-surface dead zone.

Because the center frequency and bandwidth remain unchanged, your existing focal laws and scan plans can be transferred directly to PZT Boost probes.

Table 2: Real-World Application Advantages

Application	The Inspection Challenge	The PZT Boost Advantage
Austenitic & Dissimilar-Metal Welds	Coarse grains scatter and attenuate the beam.	More energy through the weld and a much cleaner pulse against grain noise.
Thick Castings & Forgings	Long sound paths and high attenuation.	Full-wall coverage at lower gain, providing more margin at depth.
Aerospace CFRP Composites	Attenuating laminates and near-surface delaminations.	Sensitivity through thick laminates, plus a shorter pulse for ply-level resolution.
Corrosion Mapping	Rough, pitted back walls; signal loss on long automated scanner cables.	High echo margin on rough surfaces and significantly less signal loss on 5–10 m cables.
Pipeline & Vessel Welds	Wedge attenuation and long refracted paths.	Stronger signal at the far end of the sectorial scan for sharper, more accurate sizing.

Expanding Capabilities

While this initial launch focuses on the 3.5 MHz configuration, PZT Boost technology is highly adaptable. We are actively expanding this technology to include additional frequency options, allowing us to address an even broader range of market applications and specialized inspection needs in the near future.

Ready to Upgrade Your Inspection Capabilities?

PZT Boost brings cardiology-grade precision to industrial PAUT. With deeper reach, sharper images, and unparalleled signal margin, it is designed specifically for the materials and setups that challenge conventional probes today.

To ensure we best meet your specific operational challenges, Vermon is introducing PZT Boost through targeted, direct consultations.

Let’s discuss how PZT Boost can optimize your next inspection.

Contact our technical team today at contact@vermon-ndt.com to schedule a consultation, or browse our standard configurations at pautprobes.com.
