Description

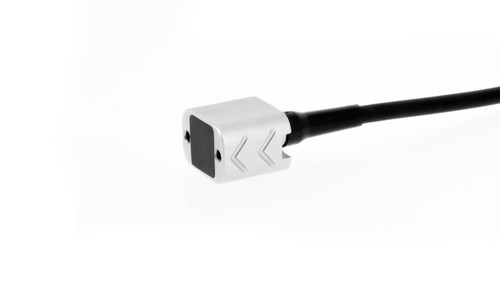

Specific probe casing for low profile inspection. The probe has been designed to be operated with bracelet type scanners for tube inspection. Total height including adaped wedged is 12 mm. Specific 35 mm curvature of the array inside the casing is made for small diameter weld inspection, to compensate the de-focusing effect from the geometry..
Typical application
This probe is typically used for automatic or manual inspection of small tube weld inspection with limited access. It can also be used for plate inspections with limited access.
Specifications
Type:
Type 15
Frequency (MHz):
7.5
Number of Elements:
32
Pitch (mm):
0.25
Elevation (mm):
10
Matching:
Rexolite
Housing Dimensions (mm):
26 L x 22 W x 9.7 H
Housing Dimensions (inch):
1.02"L x .866"W x .382"H
Housing Material:
Stainless Steel
Screws:
2x #1-64, Phillips, Captive
