Description

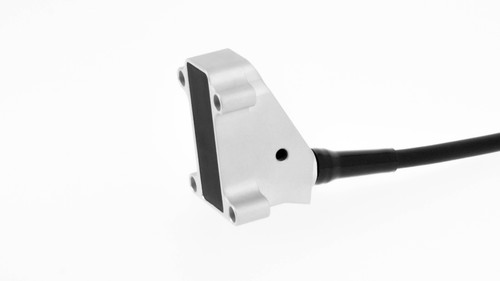

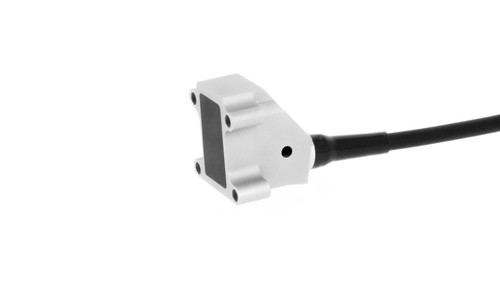

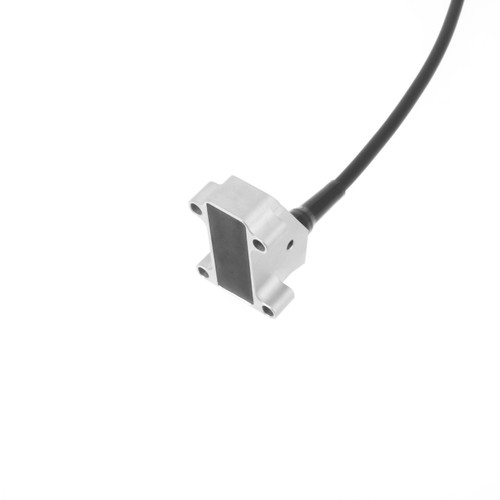

The classic casing design of 64 and 128 elements probe with mounting ears for screwing on wedges. This product is a great probe for advanced inspection applications with powerfull ultrasonic generators. The probe has great beam steering cababilities together with large linear scanning possibilities.
Typical application
This probe design fits with advanced automatic inspection application in immersion or manual or automatic local immersion inspection with a water box. This probe is commonly used for inspection of castings, forgings, welds and plates, as well as plastic, ceramics and composite.
Specifications
Type:
Type 32
Frequency (MHz):
2.25
Number of Elements:
32
Pitch (mm):
1
Elevation (mm):
10
Matching:
Rexolite
Housing Dimensions (mm):
40 L x 29 W x 25 H
Housing Dimensions (inch):
1.57"L x 1.14"W x .98"H
Housing Material:
Stainless Steel
Screws:
4x M3 x 14mm, 2mm Socket
