10L64 Type I01

LEAD TIME

1 - 2 weeks (Standard/typical lead time)

SKU : I-10L64-I01-0.5x7

TOTAL
$3,750.00 - $4,960.00

Options:


Adding to cart… The item has been added
Description

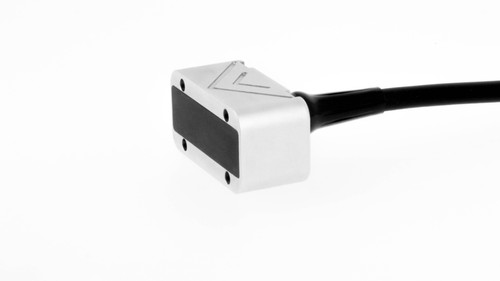

The 64 elements probe has a matching layer cover that fits with water accoustic impedance to reduce interface echoes in local immersion or immersion inspection applications. The 0.5 mm pitch makes to probe suitable for 0° and angled beam application.

Typical application

This probe design fits with advanced automatic inspection application in immersion or manual or automatic local immersion inspection with a water box. This probe is commonly used for inspection of castings, forgings, welds and plates, as well as plastic, ceramics and composite.

Specifications
Type:
Type l01
Frequency (MHz):
10
Number of Elements:
64
Pitch (mm):
0.5
Elevation (mm):
7
Matching:
Water
Housing Dimensions (mm):
50 L x 19 W x 25 H
Housing Dimensions (inch):
1.97"L x .748"W x .984"H
Housing Material:
Stainless Steel
Screws:
No
