Description

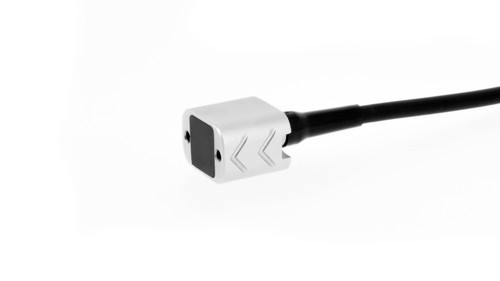

Small footrprint PAUT probe for contact inspection application. With an 8x8mm contact area, it can be used for a variety of inspections with challenging contact areas with 0° or angled wedges.
Typical application
This small pitch probe design has great beam steering capabilities to sector scan thin multi layers sandwich parts. Typical applications include thickness measurement, bounding inspection, shock and scratch destection. The probe is compliant with Aeronautic scribe line inspection codes.
Specifications
Type:
Type 00
Frequency (MHz):
10
Number of Elements:
16
Pitch (mm):
0.31
Elevation (mm):
5
Matching:
Rexolite
Housing Dimensions (mm):
8.0 L x 8.0 W x 25 H
Housing Dimensions (inch):
.315"L x .315"W x .984"H
Housing Material:
Stainless Steel
Screws:
no
